How to Get Resource Loading Histogram/S Curve in Primavera P6

The resource histogram allows us to use projected and historical actualized data to trend resource quantities, resource hours and cost in future. It also allows us to determine the potential risks of excessive supply of resources or lack of resource requirement.

This tutorial demonstrates how resources allocation chart (histogram/S curve) is produced in Primavera P6.  Assume that you have done “Assigned activities and Sequenced activities to see resource loading histogram/S curve bar chart in Primavera P6. After assigning and sequencing of activities,

(1) Allocate overall resource and their rated cost
(2) Assign resources in activity detail section and
(3) View resource loading histogram/S curve.

1) How to allocate overall resources and cost?

a)   Go to Enterprise > Resource >
Note: When you are at Resource, you will see the filter name “Current Project Resources” If you have already opened a resource loaded project. See figure below

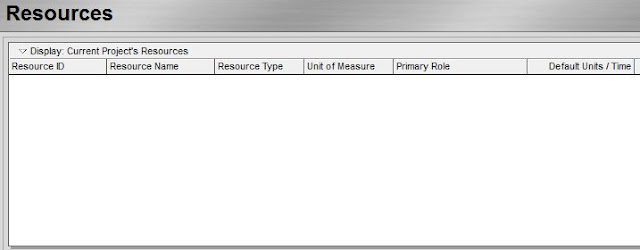

A blank project resource dictionary only will be displayed if no resource has been added to current project. See below image.


b) Add New Resource (Note : If the existing resources are not applicable for a specific project or no resource has been assigned to current project.You can skip this step if the required resources are available in resource dictionary.)

When you try to add new resource, you will get the message like “In order to add resource, the filter will be changed to display all resources” and you will see all resources for all the projects. New Resource Wizard will be prompted, and follow the wizard. You will be asked to enter the following,
  • Resource ID,
  • Resource Name,
  • Allocate Resource Type (Labor, Non labor and material),
  • Rate (Price/Unit), Default Units/Time and Max Units/Time,
  • Contact address if applicable
  • Resource roles which describes their skills
  • Resource Calendar
  • Select “Auto- compute if you want actual units are updated by Primavera or select “Do not auto-compute actual” if you can update manually for actual man hours spent.
  • Timesheets set up and log in

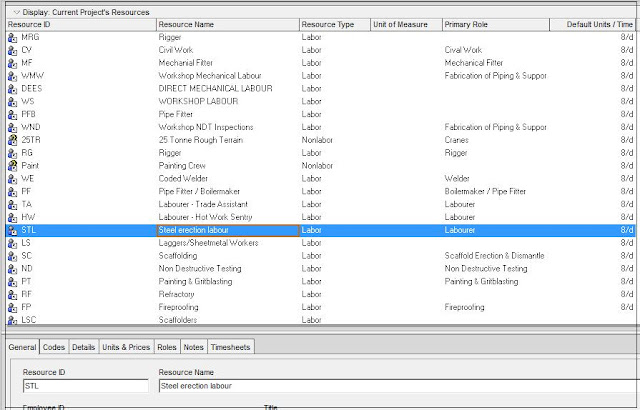

After entering of all data, you will notice that the newly added resources are not in the desired location. Therefore, allocate those resources according to their resource level. For example, Pipe fitter, Rigger/Signaler, General worker, Fire watches man, Workshop labor, Painter, etc are allocated under construction department of Petrochemical Projects. See figure below.


2) How to assign resources in activity detail section?

Go to Activities page > Select the activity > Go to Resource tab which is next to Relationships tab > Add Resource which is located near the bottom of activity detail box > Select required resource and assign it. You may also assign resource details such ; resource curve, budgeted units and actual units.

3) How to view and print resource histogram and S curve?


(a)  Go to Activities page > Select Resource usage profile, and then you will see “Current Project’s Resources” Column on the left and histogram and bar chart on the right side of the layout. The individual loading chart, for instance, welder’s resource profile is shown in the following figure.

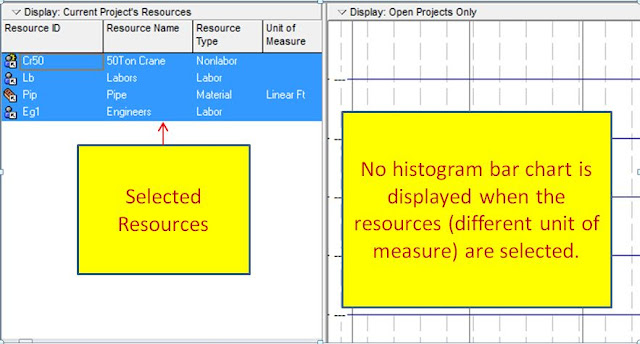

Remember that you are not able to view both materials and labor or non labor histogram bar chart at the same time as they do not have the same unit of measure. You will be able to view material resource curve, both labor and non labor curve , labor or non labor curve each time individually.


b)   You can customize the appearance of bar chart by the Resource Usage Profile Options.  Right Click on the bar chart area to find Resource Usage Profile Options. You can select “By date” to see interval data (Histogram Chart) and select “Cumulative (S Curve) to see total manpower unit in the following check box below.


c)   The following check box is used when you want to show manpower resource profile instead of man hour unit. P6 will calculate total men per period (interval) based on working hrs per period (interval) and total man hours per period. For example, total men per week would be 10 when total man hours for a week are 400 and 40 working hrs per week.


d)    And then, select all resources in resource column to view overall man power allocation. To print the bar chart, Go to print preview > page set up > Options > Select “Profile” and unselect Activity Table, All columns, Grid lines and Gantt chart. Set the time scale start from “PS-Earliest Project Start” to “PF-Latest Project Finish”. Finally you will see the bar chart as below.


e) According to above bar chart, the weekly interval manpower is shown on the left side and total manpower allocation is on the right side.

f) One of the reason for viewing resource histogram is to identify overallocated resources against the available resources. To view any overallocated resources in your project, go to Data tag on "Resource Usage Profile Options" window, then select Show Limit and Show Overallocation. Any resource unit above the limit line (black line) is over allocated. Normally, overallocated resource is shown in red bar. see below snapshots.





How to view "Stacked Histogram?

You can also see “Stacked Histogram” for this manpower allocation. Right Click on the bar chart area to find “Stacked Histogram”. Firstly, click on "Stacked Histogram" tag, and then you can go to "Resource Usage Profile Options" to get screen shot in step-g. See figure below.


Go to Resource Profile options > Assign Resource Filter/Group Name > Select   Total cumulative curve as shown in Figure below.


Finally, you will get Stacked Histogram as shown in below. The stacked histogram represents the manpower allocation by individual trade/discipline for a particular period as well as total manpower allocation (total manpower = 200 men, see the following figure) for all time . It can be printed the same way done on item 3, d.


When Stacked histogram is viewed, one thing to take note is "Overallocated Resource" can't be identified on that view. Switch back to normal histogram by deselecting "Stacked Histogram" so as to analyse overallocated resources.

Are you working on multiple projects environment ?

Go to "Open" select all projects that you wish to view resource profile by pressing and holding control key if you are handling multiple projects.
There are the related posts (1) Tutorial-How to generate S curve/histogram from Primavera, P6 which describes how the progress (histogram curve/S curve) are produced using P6 export excel data (2) Creating discipline wise manpower histogram using Primavera P6 export data .

61 comments:

  1. THE SOLUTION MENTIONED ABOVE IS FOR WHAT VERSION OF PRIMAVERA AS MINE SHOWS THE SAME SCREEN SHOTS AS MENTION ABOVE BUT DIAGRAMS SHOWS IN F STEP IS DIFFEENT FROM WHAT I GET EVEN THOUGH I FOLLOW THE SAME STEPS. WHEN I CLICK/CHECK STACKED HISTGRAM ALL THE BARS WITH S CURVE JUST GO AWAY AND NOTHING ON THE SCREE.I click resource usage profile options and screen i get is same as in steps b,& c , but the one shown in step g is not available in my P6 , I DON' SEE Assign Resource Filter/Group Name > Select Total cumulative
    i have attached screen shot what i get.
    PLEASE HELP ME OUT TO LEARN THIS STACKED GRAPHS

    ReplyDelete
    Replies
    1. Azhar, if you don't see the Total Cumulative curve, your resources are material. you need change their type to Non-Labour or Labour resource.

      Amireh

      Delete
  2. @Azhar
    Dear Azhar,

    This is based on P6.0. I think you probably couldn’t find “Stacked Histogram” and “Resource Usage Profile Options” tag as shown in step-f. (I have added the new screen shot for better understanding).
    If you can follow step-f, step-g can be done easily to assign “Resource Filter/Group Name” which will bring you to produce the S curve/Stacked histogram.
    Stacked Histogram and S cuve would be produced if you select “Total cumulative curve” (See step-g).
    If you select on “No cumulative curve”, the Stacked histogram only will be displayed.
    I hope it would help.

    ReplyDelete
  3. @Azhar

    Dear Azhar,

    For the "Stacked Histogram" to show up, you need to use a filter to add specific resources.
    To this:
    1- Go to the "Resource Usage Profile Options",
    2 - On the data tab, on the "Select Pattern/Color" section, Click Add, to add a filter on the resources defined in your project. Do a separate filter for each resource you want to show on the Stacked Histogram.
    3- On Filters Dialog, Filter Name should be a descriptive label for the resource in question. Select the resource by "Resource ID".
    4-Now you can choose a pattern and color for this resource on "Resource Usage Profile Options" .
    5- Repeat the same for other resources ( a single resource each time).

    Hope this will help

    ReplyDelete
  4. Hey, this is Kushal this side.

    I am using P6.2 Version. I get stuck up when I try to go for Future Period Bucket Planning. I allocate the resources, attach a curve to the resource for an activity, but when the Resource Usage Spreadsheet is opened, I don't find the activity cells for any period to be manually editable.
    I have tried many a times but have failed eventually. I read in the P6 help that the cells have to be white instead of grey for manually editing the resource distribution for the period. What is the concept of this, can anybody please help me out in this regard.

    Thanking you in advance

    ReplyDelete
  5. @Anonymous

    Kushal,this could be the solution for you. please follow the link:
    http://www.toolboxforplanning.com/2011/05/working-with-resource-usage-spreadsheet.html

    ReplyDelete
  6. Hi Min!

    I learned your tips for manpower stack histogram, however i find difficulty during Print set up. I would like to ask how to increase the font size of the scale (for manhours & cummulative manhours) in P6.

    Please do share...

    regards,

    Anthony D.

    ReplyDelete
    Replies
    1. Hi Anthony D,

      It can be done by adjusting scaling. Go to page tag under Page Setup. Then,select the appropiate scale. Normally,better result can be achieved by selecting more than 100%.

      Delete
  7. Hi its good learning experience ..good work

    ReplyDelete
  8. I need a resource graph that shows linear feet over time. My objective is to determine how many crews will be need to lay various feet of pipe per day.

    I have primary resources assigned as well as material resources to each project. How do I show the both in the my graph? I need to display the graph as a stacked histogram. Thanks!

    ReplyDelete
    Replies
    1. Hi,
      A stacked histogram for both material and manpower resources can be displayed in excel using P6 export data. Please follow the link ;http://www.toolboxforplanning.com/2011/03/developing-resource-curveprogress-curve.html

      Delete
  9. Hi

    How can i assign an s-curve type (i.e bellshaped) to all resources at onetime

    ReplyDelete
    Replies
    1. Any S-Curve to all resources can be assigned at onetime by two ways;

      (1)Resource Assignment Window : Go to "Project", Select "Resource Assignment",bring out the "Curve" column, then fill down the selected curve type to all resources.

      (2)Global Change : Go to "Tools","Global Change", Create New Global Change query by selecting "Activity Resource Assignments" from "Select Subject Area" drop down list and Parameter is Curve = Bell Shaped.

      Delete
  10. thanks alot. it was very helpful.

    ReplyDelete
  11. What is the meaning of Primavera planning Level 1,2,3,4 ?
    how to plan quantity wise planning and scheduling ?

    please help me

    gjganesan26@gmail.com

    ReplyDelete
  12. How come my stacked histogram not equal to sum of single Resource usage profile? thanks

    ReplyDelete
  13. how to change y axis in resourse usage profile sheets.for egs my y axis shows 1000d ,2000d etc.
    i want to show in units 10,20 ,30 etc

    please advice

    ReplyDelete
  14. Is there a way for P6 to calculate the manpower in number of craft and display on the curve? For instance, will P6 divide the weekly total hours by 50 hrs/wk to give a headcount?

    ReplyDelete
  15. In P6 what is the default Resource curve?

    ReplyDelete
    Replies
    1. Dear reader,
      Thanks for your comments. The default Resource Curve in P6 is set to Linear Curve though no resource curve is assigned. Man hour is linearly distributed overtime which is the basis of overall manpower plan.

      Delete
  16. i completed civil engineeriner 3rd year,i want to go coaching for primavera,is primavera useful in construction technology and project management or not? i am intrested to learn primavera.

    plz give reply.

    shivakiranmalluri@gmail.com

    ReplyDelete
    Replies
    1. Most of the Oil and Gas project development and construction sectors have been using Primavera P6 for managing and the successful implementation of projects. I would say that Primavera is one of the most popular software in the market. Though Primavera is one of the most powerful tools, you need to know in-depth knowledge and skill in order to get the best result from Primavera. Most of the construction and project management companies are willing to hire project controls professionals, planners and schedulers who possess planning,scheduling and project controls experience with strong Primavera ability.

      Delete
  17. Hi Min Oo,

    I have read this post and tried to assign resources to my activity (a plant shutdown), nevertheless I'm seeing that I got in my resource histogram a "limit" line (in black) that I'm overtaking. Does this means that I'm in a Overallocated units scenario? (By the way, it's not showing any red bar)

    Regards,

    Galego

    ReplyDelete
    Replies
    1. Hi Galego,
      Thanks for your valuable comments. Showing "limit" line (in black) on resource histogram doesn't mean your project resource is overloaded. To see whether you are in an “Overallocated Units” scenario, check any resource bar that is above the limit line. If the resource bar is above the limit line, then your resource is overloaded and you are in an “Overallocated Units” scenario.
      To see "Overallocated Units" (in red bar), select "Show Overallocation" on " Data" tag,"Resource Usage Profile Options" window.
      Regards,

      Delete
    2. Thank you for your valuable comments as well.

      I'm seeing that, indeed, I have some resources overllocated in my schedule. Checking the different options in Primavera I'm seeing that there is the "Resource Level" Option; but I'm not sure if this is the option I should use in order to solve this problem. What's your opinion about?

      Kind regards,

      Galego.

      Delete
    3. (1)Prior to resource leveling, a couple of points need to be checked.
      (a)Have you declared resource limit for each resource in Resource Dictionary? If not, set the resource maximum available limit called “Max Units/Time”. P6 will indicate as you are in “Overallocated Units” scenario if resources limit (Max Units/Time) is less than the required unit (resource).
      (b)Have you checked resource calendar assigned to a particular resource? If resource calendar’s works hours/day is less than activity calendar, P6 will show your resource is overloaded. At least you need to know why P6 shows as overloaded before attempting to do leveling. If resource calendar is chosen not to be the same with activity calendar due to resource availability, then resource leveling work can be proceed.
      (2)If you are satisfied with all your resource and schedule setting, then resource leveling can be proceed using “Level Resources” form with caution. Try to work on small schedule so as to understand how P6 software works on leveling resource prior to working on complex project.
      (3)My best choice is not only to rely on resource leveling function provided by P6, but manual resource leveling method is preferred. Example of manual resource leveling methods are changing resource curve, manual editing on the resource usage spreadsheet, changing sequence, increased working hours , extend the duration of a particular activity if appropriate, etc. I hope this will help you.
      Regards,

      Delete
    4. Thanks for your quick reply. I'll use your tips to see if I could improve my resource assignment.

      Anyway, in your own experience, is it "normal" in your professional experience that you have to deal with resource overlocation?

      Best Regards,

      Galego.

      Delete
    5. Hi Galego,

      Yes,it is a normal work that used to be done.

      Delete
    6. Hi again Min Oo,

      Using your advices, I think that I could manage the overallocation problem I had. Anyway, in one week time I'll have to check this schedule in a plant outage (BTW, the first one I will use Primavera to check). Thank you for that.

      We keep the contact.

      Delete
  18. In Primavera Resource usage profile option, is there a way to adjust the chart scale ? it seems to auto adjust based on the bar heights ? Any ideas ?
    Cathy O

    ReplyDelete
    Replies
    1. Hi Cathy,
      Thank you for your comment. There is no option to adjust the chart scale in Resource Usage Profile Option. But you can view the chart scale changes and print the bar chart after changed. Click on “Zoom In Zoom Out” icon or go to “View”, “Time Scale”, then play with the date interval (Month/Week, Week/Day 1, etc.)
      Regards,

      Delete
    2. Min,
      Thanks for your reply, It would be a nice option to lock down the "vertical" scale so week to week charts depict changes more easily. Zooming or timescale adjustments don't have the same result. I can edit as PDF or as JPEG, it's no Problem only an additional step.
      Thanks,
      Have a wonderful day !
      Cathy O

      Delete
  19. Hello, it's Galego again.

    About the hours assignment in resources, I'm doing right now the analysis post-outage to check the real hours spent in activities versus the assigned hours. The problem I have right now is that in some activities I spent less hours than previously assigned and I want to finish those activities as such, for instance in one activity I spent 100 hours' resources even if I have foreseen 150 hours for this activity. When I try to finalize the activity (Status-Finished) then the software is doing it but with the original hours, in this case 150.

    Is there any way to finalize the activity without assigning the whole hours to it?

    Best regards, Galego.

    ReplyDelete
    Replies
    1. Glad to hear that you have been working with resource loading in P6. If I understand correctly, you want to update the activity status with the actual hour spent (not the estimated or budgeted hours).
      According to P6 default resource calculation setting, when activity status is in-progress or completed, actual hours is atomically updated by P6 assuming that actual hour spent is the same as earned hours (% x budgeted hours)if you don’t enter actual hour by yourself.
      To resolve your issue,
      - Enter actual hours manually regardless of actual progress of the work.
      Remove the P6 default option, if you don’t want P6 to update the actual hours for you. To do that,
      (1) Go to project list
      (2) Select the desired project and open it
      (3) Click on the “Calculations” tag, then look for “Resource Assignment” on the right side
      (4) Un-select on the “Recalculate Actual Units and Cost when duration % complete changes” option box
      That’s it.

      Delete
    2. Many thanks for your reply.

      Now I'll begin with a big construction schedule (more than 2000 activities). I will contact with you to some issues that will raise during the preparation.

      Best regards,

      Galego.

      Delete
    3. You are welcome Glego. Let me know whenever you need help.

      Delete
    4. Hello again Min Oo,

      I'm not able to display the stacked histogram (by resources) in my screen, and I'm following the steps you've shown us in this post. What could be wrong? It's the last step I need to perform to finish but I'm not able to understand why this is happening.

      Many thanks for your cooperation and best regards,

      Galego

      Delete
    5. Hi Galego,

      If the normal histogram displays, the stacked histogram should be able to see. Check the resource filter again.

      Delete
  20. Hello Min Oo,

    Do you have video tutorials for Primavera P6?

    Thanks

    SJA

    ReplyDelete
    Replies
    1. Hi,it is not available at the moment.

      Delete
    2. Thanks for your quick reply.

      I am a beginner user - From where should I start learning P6 in your blog? I can do the Gantt chart scheduling, but need help in resource allocation/costs/updating schedules etc.

      SJA

      Delete
  21. I had a schedule prepared ,I had to prepare s curve can u suggest me how to do s curve

    ReplyDelete
  22. I had prepare a schedule ,can u suggest for loading resources,once after loading resources how to monitor and control the resource loaded schedule.

    ReplyDelete
  23. How to Get Resource Loading Histogram/S Curve in Excel and how to export the date ?
    Please help

    ReplyDelete
  24. Hi Min Oo
    Please can you help on how to develop Early and Late Scure. Again please help on how to develop the forecast detail and forecast Scurve. Thank you.

    ReplyDelete
    Replies
    1. Hi Fred,
      Thanks for the comments. To view Early, Late Curves and Forecast S Curve,
      - Go to “Activity Usage Profile”,
      - Select “Activity Usage Profile Options” and open the “Data” tag
      - On the left side of Data tag, select “Units” if cost data is not available.
      - Once you have selected “Units”, then select either “Labor” or “Non Labor” to see different bars/curves
      - Select “Remaining Early” and “Remaining Late” tip boxes on the Cumulative. Then you should be able to see Remaining Early and Late Curves.
      - To view Forecast S Curve, select “Estimate at Completion – Labor Units”

      Delete
  25. Please is it possible to load resources and do the normal scheduling without cost. Because in some organization they try hiding the resource cost saying we don't need it. Pls help on this matter. Thanks.

    ReplyDelete
    Replies
    1. As the main purpose of the execution schedule is to project the time and having cost loading schedule could result in distorting schedule’s accuracy (inaccurate project forecast completion date) if the cost-loaded schedule update is used to generate the progress payment. With these reasons, it is good enough to run fully resource loaded schedule to manage a project provided cost reporting system is available.
      As the resource loading can provide a projection of resource peak requirements. Therefore, it allows the project management team to identify limited resources and plan accordingly.

      Delete
  26. You mentioned in one of your post above that if resource availability in resource calendar is less than activity calendar, P6 would show overallocation limit when checked. What happens if we decide the activity type as Resource Dependent? Again in most schedule i have seen, the activity type that is always used is Task Dependent type. Is it possible to use Level of Effort or Resource Dependent? If yes, please advice on when to use them if required for a schedule.

    ReplyDelete
    Replies
    1. (1) If resource availability hour in resource calendar is less than working hour in the activity calendar,
      (a) With “Task Dependent” activity type - P6 will show resource overallocation without extending duration of activity until such time additional resources are available. Therefore, use the “Task Dependent activities” when multiple resources assigned to the same activity need to work together.
      (b) With “Resource Dependent” activity type – P6 will still show resource overallocation but the limit of overallocation will be definitely lower than “Task Dependent” activity type. However, the activity duration will be extended until such time resource is available. So, use resource dependent activities when multiple resources assigned to the same activity can work independently.
      (2) There is no correlation between Level of effort (LOE) activities and resource leveling. It is not included in resource levelling as resources assigned to a LOE activity are not considered in calculation. LOE activities are simply used for on-going tasks that depend on other activities such as project management.
      I hope this helps.

      Delete
  27. Please this question has to do with updating the project.
    In Activity Detail, if one decide to use Physical as %complete type, do you update both the physical % and the actual labor unit captured. Please tell me how to update in primavera using this specification i mentioned because it is what is attainable to construction projects.Thanks in advance.

    ReplyDelete
    Replies
    1. Hi Fred,

      If “Physical” % Complete type has been chosen to update the schedule, the following fields need to be updated in P6 so as to monitor where your project is heading to.
      (1) % Complete - Manually enter % by user ( i.e. Enter 20% for constructed 20/100 tons of steel works)
      (2) Actual Labour Unit - Manually need to enter actual labour spent as “Physical % completion” has no correlation with the activity’s duration or units complete.
      (3) Remaining Duration – Manually need to enter the remaining duration for the remaining works that need to be accomplished.

      Delete
  28. Is there any way to generate a S curve without any resource or cost loaded???

    ReplyDelete
    Replies
    1. Your S-Curve is a representation of the cost of your project. be it cash-in or cash-out. If there is no money involved, there can be no S-curve!

      Delete
    2. Time is a resource without cost in or out. Tracking time is one way but usually its progress related to billing and quantitative survey as a more accurate alternative.

      Delete
  29. Hi Min,

    I read most of the questions and answers on this page and I found it very useful and thanks for all your comments.
    Now, I’ve created a stacked histogram and I’m trying to show this Histogram just for “Early Remaining hrs” and not “At completion” hrs however I couldn’t find any option to do that.
    I’m wondering if you know any other way to show the “Stacked Histogram” for “Early Remaining Units”
    Thanks

    ReplyDelete
    Replies
    1. I'm glad that you found the blog is useful. By default, resource profile for Stacked Histogram is displayed based on remaining early data using remaining early date. So, you don't need to find the option to do that. The only downside is that there is no option to see the Stacked Histogram using remaining late data.
      I think you get confused with Display Option “At Completion Unit” or “At Completion Cost”. Use this option when you want to show “Cumulative Curve(S Curve) data in cost or unit.
      Thanks

      Delete
  30. Dear Min ,
    I have a simple question for one activity say Block work i assign duration as 10 days and labor say masons 6 per day and total 60 for activity . After 7 days when i update as physical % complete as 50 % and manpower masons consume as 50.Then how p6 calculate the remaining manpower based on Phyiscal % or based on manpower consumed.

    ReplyDelete
  31. need help pls
    i follow the procedure...
    i have mason, steel fixer, carpenter electrician, etc
    but my histogram only show one resources, that is mason only...

    what is the problem pls...

    ReplyDelete
  32. @ Mon Serbtos : Go to In Histogram Right click and go to Resource Usage Profile Option=>Add ( Bottom Left side on new window)=>Select Parameter as Resource ID or else you as you wish => Is equal to => In Value choose which resource you want to add on histogram by Resource ID=> Ok => Do one by one for all resources that you want to add => Now you will see all your resources in histogram
